Asa Peanut 21 Assimetric - Tecline nas 3 Versões: Ladies, Artic, e Regular

1. VERY ORIGINAL APPEARANCE – IT IS THE FIRST ASYMMETRIC WING IN THE WORLD

2. DURABILITY – 2 EXTREMELY DURABLE LAYERS ENSURE YOUR SAFETY

3. EASILY ADJUSTABLE BUOYANCY

AND THE LARGEST CAPACITY IN ITS CLASS – 21 LITRES

4. ULTRA LIGHT – 950g ONLY

(EXTERNAL LAYER IS CORDURA 1

.very easy buoyancy control

• extremely large capacity of 21 litres

• very low weight of 950g

(just think about it – below 1 kg)

• extremely durability guaranteed

by Cordura 1000D

• 3D construction

• enough space behind the head

• enough space for placing the hoses

in a desired configuration

• it can hold even a heavy equipment

above the surface of water

• the asymmetric shape allowing for fast

discharge of gas in emergency situations

• various configurational possibilities

• perfect configuration in combination

with V2 ICE Mono regulator

TECLINE Wing Set Peanut 21 Arctic Edition

TECLINE by SCUBATECH - TECLINE Wing Set Peanut 21 Arctic Edition

The TECLINE Wing Set Peanut 21 Arctic Edition includes everything what you need to dive with a single cylinder (wing, backplate and single-tank adapter).

The special feature of the TECLINE Wing Set Peanut 21 Arctic Edition is the innovative TECLINE Peanut 21 Wing.

Because of the unique asymmetrical shape of the TECLINE Peanut 21 Wing you get enough space to optimally configurate the hose routing of the regulator. Further more the asymmetric design and the position of the inflator allows the diver to deflate the wing very fast.

Details TECLINE Wing Peanut 21

- Wing for use with single cylinders, suitable for 10 Liter to 18 Liter mono tanks

- Asymmetric shape and Position of inflator allows fast deflation

- Lift capacity: 21 liter

- Very low weight: 950g

- Material outer protection cover: Cordura 1000D

- Material inner bladder: PU210

Details TECLINE Backplate + DIR Harness

- Material: stainless steel, 3mm

- Weight: approx. 2.1 kg

- Standard harness; width: 50mm; color: black

- Crotch strap

- 1x Belt buckle

- 2x D-Ring shoulder Region

- 1x D-Ring waist strap

- 2x D-Ring crotch strap

Details TECLINE Single-Tank Adapter

- To mount the single cylinder

- Material: stainless steel

- 2x Single Tank Band with stainless steel buckle

- Screw set with nuts

PVP 297€

Regulador R5 ICE tecline

A demand regulator R 5 ICE is a scuba
regulator which supplies air only when the
diver inhales it (or “demands” it). It consists
of 2 stages (first stage of pressure reduction
and second stage of pressure reduction),
and the stages of pressure reduction are
divided by intermediate hose. The trusted
and newest solutions in regulators’ design
were implemented while creating this
device. These solutions are also used by
the leading companies producing diving
equipment and they contribute to excellent
parameters of R5ICE. While describing
this regulator we can use technical terms
like: dry chamber, downstream setup of
pressure reduction, reduced pressure 0,95
MPa, twisted connections of hoses, high
quality low pressure hose with operational
pressure 1,7MPa, adjustable inhalation
knob, deflector properly directing the flow
of breathing gas in connection with Venturi
vane.
A graphic account of breathing parameters
lets us read out the values of breathing
resistance as well as the value of total
performance. The norm specifies
maximum underpressure of inhalation
and overpressure of exhalation as
follows: +2500Pa,-2500Pa and the total
performance on the level of 3,0J/l. On the
basis of presented chart and average values
of all of the several inspections which the
regulators underwent , it was established
that the values lie within the norms and
they still have a big margin. Average
values which characterize this regulator
are: 1,35J/l for breathing performance and
+1500Pa and -1000Pa for underpressure of
inhalation and overpressure of exhalation
respectively.
The effort put into breathing is similar
to the value of performance as the other
regulators available on the market demand.
In many cases R 5 ICE is competitive in
comparison with them. Additional benefit is
the ergonomic design and the configuration
of fixed components AO such as: standard
(5/8”) four intermediate pressure ports as
well as standard two high pressure ports
(7/16”). The advantage of using standard
solutions in case of pressure joints is that
the user does not have to bear the cost of
additional reductions for configuring the
regulator with other elements of diving
equipment. Compatibility of this regulator
is a very practical feature.
Equipping the first stage of the regulator in
the so called dry chamber (use of isolating
membrane) proved to be beneficial during
the test of the regulator in cold water (so
water which temperature is lower than
10°C). Taking into consideration the
geographical position of Poland as well
as the thermal conditions in our lakes and
the Baltic Sea, the increased resistance to
freezing is a big advantage of a regulator.
R 5 ICE is not prone to freezing in cold
water during hard work (consumption of air
more than 62l/min).
In case of R 5 ICE , laboratory and functional
tests conducted in Laboratory of Polish
Marine Academy in Gdynia on commission
of the Polish Register of Shipping confirm
that the regulator is safe for use. The result
of this test as far as the values of breathing
parameters are concerned places this
regulator in a comparable position to
regulators currently available on the
market.
The demand regulator (breathing apparatus)
R 5 ICE is an air diving regulator
perfect for use both in recreational and
commercial dives. It is intended to use
with any set of air tanks with operation
pressure up to 30MPa. It is compatible
with all ranges of operation pressure of
tanks currently present on the market.
This regulator can be successfully used
in dives in Polish, cold waters as well as
in expeditions into warm tropical waters
within the depth for air dives.

PVP 251,27€

Spools e Carretos Tecline

TECLINE \ SPOOLS & REELS

Spool 15m com mosquetão bronze 100mm 12,37 €
Spool 30m com mosquetão bronze 100mm 14,90 €
Spool 45m com mosquetão bronze 100mm 17,42 €
Spool 15m com mosquetão inox 100mm 24,50 €
Spool 30m com mosquetão inox 100mm  25,50 €
Spool 45m com mosquetão inox 100mm  27,75 €
Spool para aguas frias 30m com mosquetão inox 47,50 €
Spool para aguas frias 40m com mosquetão inox 49,75 €
Carreto Tecline 133m 112,50 €
Carreto Tecline 260m 119,50 €
Carreto Tecline 260m de exploração CAVE com fio vermelho 137,25 €

Sabado saida dupla tarde+noturno

Saida dupla em Sanxenxo, com chegada ao centro de mergulho as 16h para uma saida dupla.
Possibilidade visitar o naufragio Aphroditi
Para noturno é necessária luz primaria e secundária.
Marcações via 91 660 8010

Lanternas Tecline - Até 4000 Lumen

TECLINE \ LED LIGHTS

55130 Linterna para cabeza LED 17 24,75 €

55143 Linterna LED US-13, 8W 800lm 81,75 €

55143-01 Portapilas para US-12 8,75 €

55144 Linterna LED US-13, 8W 800lm Recargable con cargador 112,25 €

55144-1 Bateria de litio 2600mAmp para US-15 y US-30 - 18650 9,52 €

55147 Soft Goodman para US-13 y US-15,43 €

55150 Linterna LED US-16 Goodman, 10W, 1500lm 224,75 €

55153 Linterna LED US-15 Compact + Soft Goodman, 10W, 1500lm 99,75 €

55155 Linterna LED US-16 , 10W, 1500lm 104,75 €

55157 Linterna LED US-30, , 3000lm 179,50 €

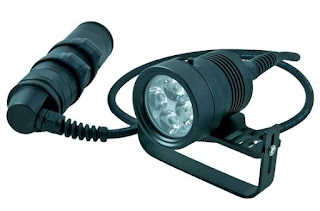

55158 Foco LED WH36 3000 lumen con Goodman handle 499,75 €

55158-1 set juntas para WH36 1,00 €

55158-2 Bateria de litio 6000mAmp para LED light WH36 - 32650 29,52 €

55165 Linterna LED D700, 700 lumen 117,00 €

55170 Linterna LED US-40, , 4000lm 578,57 €

55172 Linterna LED US-40, , 4000lm Sidemount 579,00 €

Boias Tecline: Fechadas ou Semi-Fechadas Varias dimensões

Boias Tecline, fechadas e Semi-fechadas com diferentes dimensões e válvulas OPR metalicas e bandas de reflexão Solas.
TECLINE Buoy (closed) 11 x 117 cm

- Closed-circuit design
- Metal inlet valve (inflate with inflator or mouth)
- Overpressure valve (OPV)
- 2x Solas reflective bands
- Lenght: 117 cm
- Width: 17 cm
- Color: optional orange or yellow

TECLINE Buoy (closed) 22 x 180 cm

Details TECLINE Buoy (closed) 22 x 180 cm
- Closed-circuit design
- Metal inlet valve (inflate with inflator or mouth)
- Overpressure valve (OPV)
- 2x Solas reflective bands
- Lenght: 180 cm
- Width: 22 cm
- Color: orange

Semi closed buoy 18/122 cm , OPR valve

Semi closed buoy 15/183 cm , OPR valve

TECLINE \ BUOYS OPEN
T03031 Boya Abierta 18/122 naranja 20,00 €
T03035 Boya Abierta 22/135 naranja 37,25 €
T03040 Boya Abierta 25/122 naranja 37,25 €
T03060 Boya abierta balon 95cm 46,50 €

TECLINE \ BUOYS CLOSED
85296 Boya Cerrada 22/180cm, Valvula OPR -naranja 74,25 €
85298 Boya Cerrada 11/117cm, Valvula OPR -naranja 49,75 €
85298-1 Boya Cerrada 11/117cm, Valvula OPR -amarilla 49,75 €
T03060-1 Boya Cerrada Balon , Valvula OPR 32kg 41/105 61,00 €

TECLINE \ BUOYS SEMI-CLOSED
T03010 Boya semicerrada 15/183, valvula OPR, naranja 57,25 €
T03020 Boya semicerrada 18/122, valvula OPR, naranja 59,75 €
T03030 Boya semicerrada 18/122, valvula OPR, amarilla 57,25 €
T03033 Boya semicerrada 22/135, valvula OPR, naranja 59,50 €
T03045 Boya semicerrada doble color 20/166, valvula OPR 74,75 €

Mangueiras Tecline: Todas as dimensões, cores de Preto, Branco, Rosa e Azul

SCUBATECH \ HOSES LP STANDARD

14040-00 Latiguillo inflador 0,20m estándar 13,50 €

14040-01 Latiguillo inflador 0,50m estándar 15,15 €

14040-03 Latiguillo inflador 0,55m estándar 15,15 €

14040-05 Latiguillo inflador 0,61m estándar 15,15 €

14040-07 Latiguillo inflador 0,70m estándar 15,15 €

14040-09 Latiguillo inflador 0,75m estándar 15,65 €

14040-11 Latiguillo inflador 0,80m estándar 16,41 €

14044-01 Latiguillo LP 0,50m negro estándar 13,13 €

14044-03 Latiguillo LP 0,55m negro estándar 14,39 €

14044-05 Latiguillo LP 0,60m negro estándar 15,15 €

14044-07 Latiguillo LP 0,70m negro estándar 15,65 €

14044-09 Latiguillo LP 0,90m negro estándar 16,16 €

14044-11 Latiguillo LP 0,90m amarillo estándar 16,16 €

14044-13 Latiguillo LP 1,00m negro estándar 17,17 €

14044-15 Latiguillo LP 1,00m amarillo estándar 17,17 €

14044-17 Latiguillo LP 1,20m negro estándar 18,69 €

14044-19 Latiguillo LP 1,20m amarillo estándar 18,69 €

14044-21 Latiguillo LP 1,50m amarillo estándar 20,96 €

14044-22 Latiguillo LP 1,93m negro estándar 25,25 €

14044-23 Latiguillo LP 1,50m negro estándar 26,26 €

14044-25 Latiguillo LP 2,00m amarillo estándar 26,26 €

14044-27 Latiguillo LP 2,10m negro estándar 27,52 €

14044-29 Latiguillo LP 2,10m amarillo estándar 27,52 €

SCUBATECH \ HOSES PROFLEX HP, LP

14010-00 Latiguillo inflador LP 0,20m 20,00 €

14010-00027Latiguillo inflador LP 0,27m 20,50 €

14010-001 Latiguillo inflador LP 0,35m 21,25 €

14010-002 Latiguillo inflador LP 0,43m 22,25 €

14010-003 Latiguillo inflador LP 0,43m rosa  23,21 €

14010-004 Latiguillo inflador LP 0,43m blanco  24,29 €

14010-01 Latiguillo inflador LP 0,55m  23,48 €

14010-011 Latiguillo inflador LP 0,55m rosa 24,76 €

14010-012 Latiguillo inflador LP 0,55m blanco 25,71 €

14010-03 Latiguillo inflador LP 0,61m 25,00 €

14010-04 Latiguillo inflador LP 0,65m 25,50 €

14010-05 Latiguillo inflador LP 0,70m 26,01 €

14010-051 Latiguillo inflador LP 0,70m rosa 27,38 €

14010-052 Latiguillo inflador LP 0,70m blanco 28,57 €

14010-07 Latiguillo inflador LP 0,75m 27,02 €

14010-09 Latiguillo inflador LP 0,80m 28,03 €

14010-091 Latiguillo inflador LP 0,80m rosa 29,29 €

14010-092 Latiguillo inflador LP 0,80m blanco 30,71 €

14010-12 Latiguillo inflador LP 1m 30,75 €

14012-01 Latiguillo HP 0,12m 22,83 €

14012-03 Latiguillo HP 0,15m 24,00 €

14012-04 Latiguillo HP 0,20m 25,00 €

14012-05 Latiguillo HP 0,25m 26,25 €

14012-07 Latiguillo HP 0,56m 27,50 €

14012-09 Latiguillo HP 0,60m 28,50 €

14012-11 Latiguillo HP 0,61m 28,75 €

14012-13 Latiguillo HP 0,65m 29,00 €

14012-15 Latiguillo HP 0,70m 29,25 €

14012-17 Latiguillo HP 0,80m 31,25 €

14014-00 Latiguillo LP 0,50m negro 17,50 €

14014-01 Latiguillo LP 0,56m negro 18,69 €

14014-03 Latiguillo LP 0,61m negro 19,44 €

14014-031 Latiguillo LP 0,61m rosa 20,48 €

14014-032 Latiguillo LP 0,61m blanco 21,43 €

14014-04 Latiguillo LP 0,63m negro 20,00 €

14014-0401 Latiguillo LP 0,63m rosa 20,95 €

14014-0402 Latiguillo LP 0,63m blanco 21,90 €

14014-041 Latiguillo LP 0,65m negro 20,25 €

14014-05 Latiguillo LP 0,70m negro 20,70 €

14014-051 Latiguillo LP 0,70m rosa 21,67 €

14014-052 Latiguillo LP 0,70m blanco 22,86 €

14014-06 Latiguillo LP 0,90m negro 23,50 €

14014-061 Latiguillo LP 0,90m azul 23,50 €

14014-07 Latiguillo LP 0,90m amarillo 23,50 €

14014-08 Latiguillo LP 1,00m negro 25,75 €

14014-09 Latiguillo LP1,00m amarillo 25,75 €

14014-10 Latiguillo LP1,00m verde 25,75 €

14014-10-01LP hose 1,00 m - blue 25,75 €

14014-11 Latiguillo LP 1,20m amarillo 29,00 €

14014-12 Latiguillo LP 1,50m negro  31,00 €

14014-13 Latiguillo LP 1,50m amarillo 31,00 €

14014-14 Latiguillo LP 1,93m negro  34,75 €

14014-141 Latiguillo LP 1,93m rosa 36,43 €

14014-142 Latiguillo LP 1,93m blanco 38,33 €

14014-143 Latiguillo LP 1,93m azul 34,75 €

14014-15 Latiguillo LP 2,00m negro  35,50 €

14014-151 Latiguillo LP 2,00m rosa 37,38 €

14014-152 Latiguillo LP 2,00m blanco 39,05 €

14014-17 Latiguillo LP 2,00m amarillo 37,25 €

14014-19 Latiguillo LP 2,10m negro 37,75 €

14014-191 Latiguillo LP 2,10m rosa 39,76 €

14014-192 Latiguillo LP 2,10m blanco 41,67 €

14014-21 Latiguillo LP 2,10m amarillo 37,75 €

Treinos de Preparação para Mergulho Profundo

Uma vez que temos a Especialidade de Mergulho Profundo em Outubro, de forma a que todos estejam devidamente preparados para o efeito serão realizados treinos específicos sessões de aquisição de skills, (terminologia mais correcta) de forma a tornar os mergulhadores perfeitamente aptos para estes mergulhos. Na i-DIVE, não nos limitamos aos standards mínimos de formação, mas o foco vai para a Formação de Competências. Sessão 1: Revisão de técnicas essenciais para mergulhos profundos. Planeamento de mergulhos e gestão de gás. Sessão 2: Flutuabilidade e lançamento correcto de bóia de patamar Sessão 3: Utilização de carreto e ajustes na colocação de linha. (Em mergulhos profundos, assim como nocturnos e visibilidades reduzidas, a utilização de linhas guia torna-se essencial) Sessão 4: Gestão de emergências, falhas e redundâncias, e equipamento dedicado. Os treinos e formação são realizados em qualquer dia e horário seja semana ou fim-de-semana, com pré-marcação e personalizados sempre que requeridos. Contacto: geralidive@gmail.com

Achondo e Ybis - Saida Dupla Domingo 2 Outubro

Um dos naufrágios mais interessantes no limite do mergulho recreativo,
https://vimeo.com/channels/idive/27943855

Certificação minima: Avançada ou Especialidade Deep Diving

e Ybis para a segunda imersão. Wreck Diving weekend!

marcações em pré-pagamento até 5ª-feira:geralidive@gmail.com

Garrafas de Mergulho na i-DIVE - Aço e Aluminio - Eurocilinders, Faber e Luxfer

Eurocilinders:
20008-12 Garrafa 10 L 171 mm 232 bar, with mono valvula SET  235,00 €
20009-1 Garrafa 12 L 171 mm 232 bar, with mono valvula 224,98 €
20012-1 Garrafa 12 L 203 mm 232 bar, with mono valvula SET 248,71 €
20017-1 Garrafa 15 L 203 mm 232 bar, with mono valvula SET  298,75 €
Faber:
20011-1 garrafa 12 L 203 mm 200 bar Faber, with valvula SET 236,09 €
20015-1 Garrafa 15L 203 mm, 200 bar, Faber with mono valvula SET  270,68 €
Luxfer:
Aluminio:
T13020 Alu Garrafa Luxfer 7L with mono valvula SET  194,25 €
T13040 Alu Garrafa Luxfer S080 = 11,1 L with mono valvula SET 216,25 €
